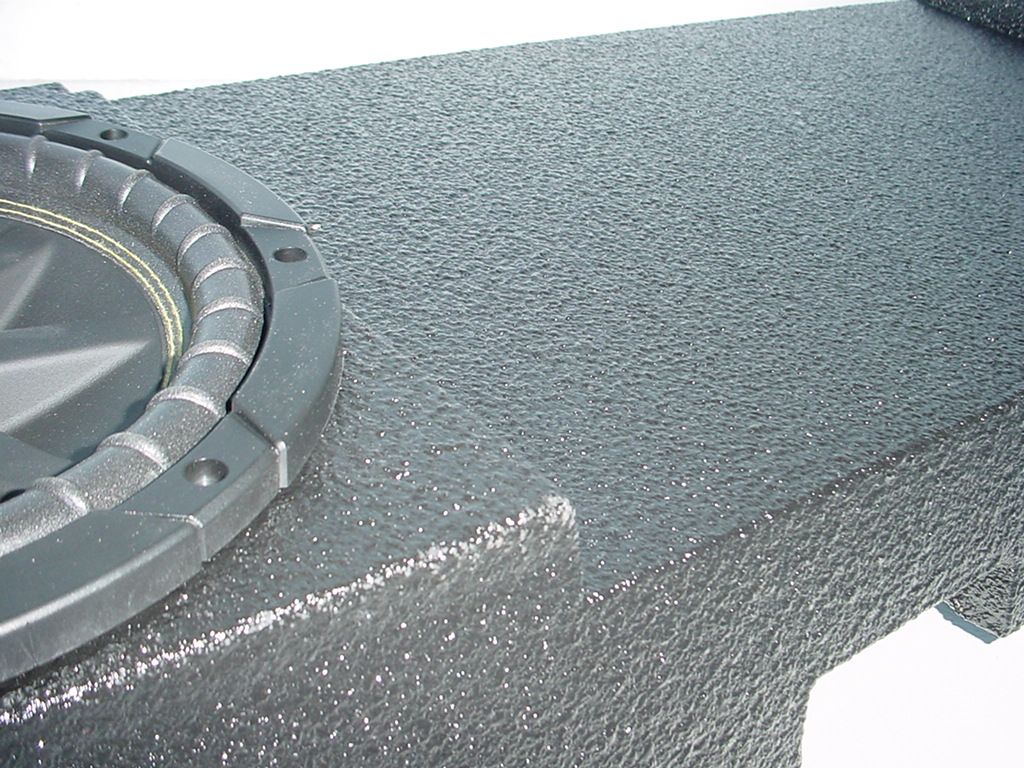

Armor Coated With High Pressure Polyurethane Bed Liner Material
Increases The Base, stiffens the wood and no air leak
Weather and water proofing
Fits 2002-2009 Chevy Avalanche and Cadillac Escalade
Can be Installed and Remove in a few seconds
Three Glass Holder Brackets Hold the Box in Place.
The two Mid-gate Knobs on each sides locks the box in .
2-10'' Kicker C-10 Speakers are included
Up firing System
Air volume .66 Cubic Feet Per side
Material 5/8'' M.D.F
Mounting Depth 5.5''
kicker C-10 Specifications
300 watts max
150 watts RMS
Mounting Depth: 4-15/16"
Polypropylene cone
Free Air Usage: yes
Sensitivity: 87.3 dB
Frequency Response: 30-500 Hz
Impedance: 4 ohms
Sealed Box Volume 1.0 -2.4 cubic feet
Ported Box Volume 1.25 - 1.75 cubic feet
Cutout Diameter 9-1/4"
Bottom view
Beautiful finish

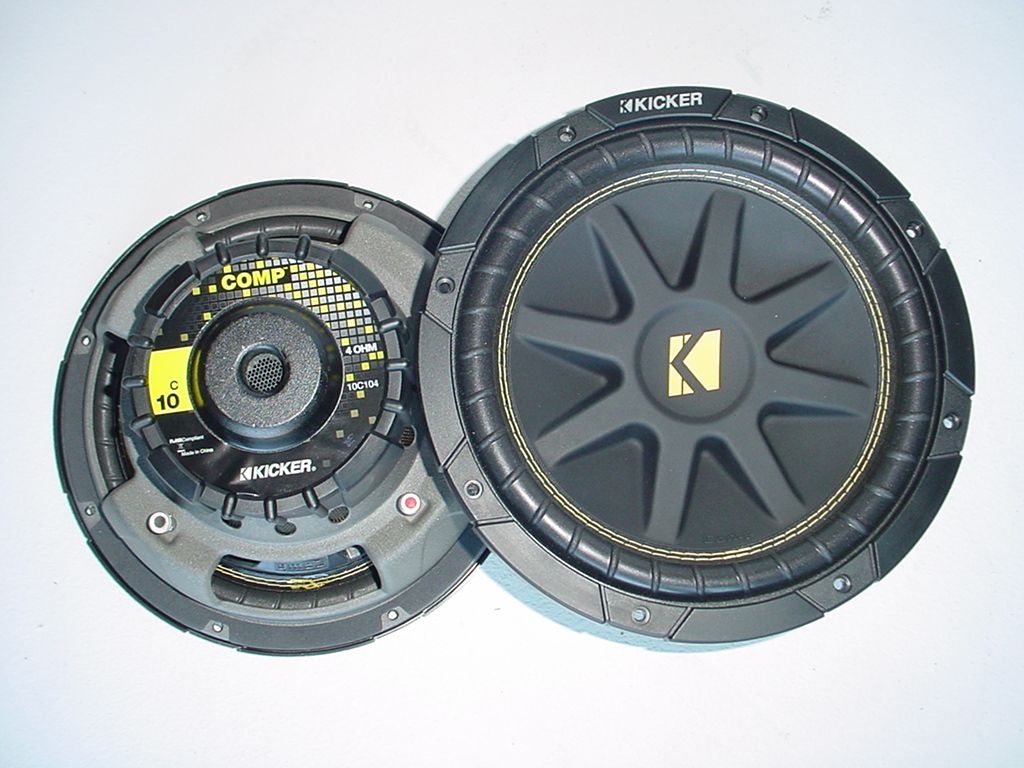

Kicker C-10 Brand New
Removing the plastic tube end cover.
Installed
Showing how much room there is for folding the Mid-Gate
With the seat closed and latched
Side view under the seat
|
